FileParser Class Reference

File parser - parse essence from a sequential set of files. More...

#include <essence.h>

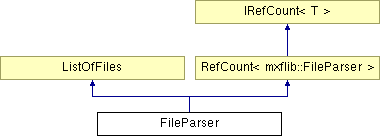

Inheritance diagram for FileParser:

List of all members.

Public Member Functions
	FileParser (std::string FileName="")
	Construct a FileParser and optionally set a single source filename pattern.
ParserDescriptorListPtr	IdentifyEssence (void)
	Identify the essence type in the first file in the set of possible files.
EssenceParser::WrappingConfigList	ListWrappingOptions (bool AllowMultiples, ParserDescriptorListPtr PDList, WrappingOption::WrapType ForceWrap=WrappingOption::None)
	Produce a list of available wrapping options.
EssenceParser::WrappingConfigList	ListWrappingOptions (ParserDescriptorListPtr PDList, WrappingOption::WrapType ForceWrap=WrappingOption::None)
	Produce a list of available wrapping options.
EssenceParser::WrappingConfigList	ListWrappingOptions (bool AllowMultiples, ParserDescriptorListPtr PDList, Rational ForceEditRate, WrappingOption::WrapType ForceWrap=WrappingOption::None)
	Produce a list of available wrapping options.
EssenceParser::WrappingConfigList	ListWrappingOptions (ParserDescriptorListPtr PDList, Rational ForceEditRate, WrappingOption::WrapType ForceWrap=WrappingOption::None)
	Produce a list of available wrapping options.
EssenceParser::WrappingConfigPtr	SelectWrappingOption (ParserDescriptorListPtr PDList, WrappingOption::WrapType ForceWrap=WrappingOption::None)
	Select the best wrapping option without a forced edit rate.
EssenceParser::WrappingConfigPtr	SelectWrappingOption (ParserDescriptorListPtr PDList, Rational ForceEditRate, WrappingOption::WrapType ForceWrap=WrappingOption::None)
	Select the best wrapping option with a forced edit rate.
EssenceParser::WrappingConfigPtr	SelectWrappingOption (bool AllowMultiples, ParserDescriptorListPtr PDList, WrappingOption::WrapType ForceWrap=WrappingOption::None)
	Select the best wrapping option without a forced edit rate.
EssenceParser::WrappingConfigPtr	SelectWrappingOption (bool AllowMultiples, ParserDescriptorListPtr PDList, Rational ForceEditRate, WrappingOption::WrapType ForceWrap=WrappingOption::None)
	Select the best wrapping option with a forced edit rate.
void	SelectWrappingOption (EssenceParser::WrappingConfigPtr Config)
	Select the specified wrapping options.
void	Use (UInt32 Stream, WrappingOptionPtr &UseWrapping)
	Set a wrapping option for this essence.
EssenceSourcePtr	GetEssenceSource (UInt32 Stream)
	Return the sequential EssenceSource for the main stream (already aquired internally, so no need to use the stream ID).
EssenceSourcePtr	GetSubSource (UInt32 Stream)
	Build an EssenceSource to read from the specified sub-stream.
bool	OpenFile (void)
	Open the current file (any new-file handler will already have been called).
void	CloseFile (void)
	Close the current file.
bool	IsFileOpen (void)
	Is the current file open?
Protected Types
typedef std::list< SubStreamInfo >	SubStreamList
	A list of sub-stream sources, with associated properties.
Protected Member Functions
bool	GetFirstSource (void)
	Set the sequential source to use the EssenceSource from the currently open and identified source file.
bool	GetNextSource (void)
	Set the sequential source to use an EssenceSource from the next available source file.
Protected Attributes
bool	CurrentFileOpen
	True if we have a file open for processing.
FileHandle	CurrentFile
	The current file being processed.
EssenceSubParserPtr	SubParser
	The sub-parser selected for parsing this sourceessence.
UInt32	CurrentStream
	The currently selected stream in the source essence.
MDObjectPtr	CurrentDescriptor
	Pointer to the essence descriptor for the currently selected stream.
WrappingOptionPtr	CurrentWrapping
	The currently selected wrapping options.
EssenceSourceParent	SeqSource
	This parser's sequential source - which perversely owns the parser!
DataChunkPtr	PendingData
	Any pending data from the main stream held over from a previous file is a sub-stream read caused a change of file.
SubStreamList	SubStreams
	A list of sub-stream sources.
Friends
class	SequentialEssenceSource
Classes
class	SequentialEssenceSource
	Essence Source that manages a sequence of essence sources from a list of file patterns. More...
struct	SubStreamInfo
	Information about a substream. More...

---

Detailed Description

File parser - parse essence from a sequential set of files.

---

Member Typedef Documentation

typedef std::list<SubStreamInfo> SubStreamList [protected]

A list of sub-stream sources, with associated properties.

---

Constructor & Destructor Documentation

FileParser

(

std::string

FileName = ""

)

[inline]

Construct a FileParser and optionally set a single source filename pattern.

---

Member Function Documentation

ParserDescriptorListPtr IdentifyEssence

(

void

)

Identify the essence type in the first file in the set of possible files.

EssenceParser::WrappingConfigList ListWrappingOptions	(	bool	AllowMultiples,
		ParserDescriptorListPtr	PDList,
		WrappingOption::WrapType	ForceWrap = WrappingOption::None
	)			[inline]

Produce a list of available wrapping options.

EssenceParser::WrappingConfigList ListWrappingOptions	(	ParserDescriptorListPtr	PDList,
		WrappingOption::WrapType	ForceWrap = WrappingOption::None
	)			[inline]

Produce a list of available wrapping options.

EssenceParser::WrappingConfigList ListWrappingOptions	(	bool	AllowMultiples,
		ParserDescriptorListPtr	PDList,
		Rational	ForceEditRate,
		WrappingOption::WrapType	ForceWrap = WrappingOption::None
	)

Produce a list of available wrapping options.

EssenceParser::WrappingConfigList ListWrappingOptions	(	ParserDescriptorListPtr	PDList,
		Rational	ForceEditRate,
		WrappingOption::WrapType	ForceWrap = WrappingOption::None
	)			[inline]

Produce a list of available wrapping options.

EssenceParser::WrappingConfigPtr SelectWrappingOption	(	ParserDescriptorListPtr	PDList,
		WrappingOption::WrapType	ForceWrap = WrappingOption::None
	)			[inline]

Select the best wrapping option without a forced edit rate.

EssenceParser::WrappingConfigPtr SelectWrappingOption	(	ParserDescriptorListPtr	PDList,
		Rational	ForceEditRate,
		WrappingOption::WrapType	ForceWrap = WrappingOption::None
	)			[inline]

Select the best wrapping option with a forced edit rate.

EssenceParser::WrappingConfigPtr SelectWrappingOption	(	bool	AllowMultiples,
		ParserDescriptorListPtr	PDList,
		WrappingOption::WrapType	ForceWrap = WrappingOption::None
	)			[inline]

Select the best wrapping option without a forced edit rate.

EssenceParser::WrappingConfigPtr SelectWrappingOption	(	bool	AllowMultiples,
		ParserDescriptorListPtr	PDList,
		Rational	ForceEditRate,
		WrappingOption::WrapType	ForceWrap = WrappingOption::None
	)

Select the best wrapping option with a forced edit rate.

void SelectWrappingOption

(

EssenceParser::WrappingConfigPtr

Config

)

Select the specified wrapping options.

void Use	(	UInt32	Stream,
		WrappingOptionPtr &	UseWrapping
	)

Set a wrapping option for this essence.

IdentifyEssence() and IdentifyWrappingOptions() must have been called first

EssenceSourcePtr GetEssenceSource

(

UInt32

Stream

)

Return the sequential EssenceSource for the main stream (already aquired internally, so no need to use the stream ID).

EssenceSourcePtr GetSubSource

(

UInt32

Stream

)

Build an EssenceSource to read from the specified sub-stream.

Build a new info block

bool OpenFile

(

void

)

[inline, virtual]

Open the current file (any new-file handler will already have been called).

Required for ListOfFiles

Returns:

true if file open succeeded

Implements ListOfFiles.

void CloseFile

(

void

)

[inline, virtual]

Close the current file.

Required for ListOfFiles

Implements ListOfFiles.

bool IsFileOpen

(

void

)

[inline, virtual]

Is the current file open?

Required for ListOfFiles

Implements ListOfFiles.

bool GetFirstSource

(

void

)

[protected]

Set the sequential source to use the EssenceSource from the currently open and identified source file.

Returns:

true if all OK, false if no EssenceSource available

bool GetNextSource

(

void

)

[protected]

Set the sequential source to use an EssenceSource from the next available source file.

Returns:

true if all OK, false if no EssenceSource available

Must restart parsing the hard way

---

Friends And Related Function Documentation

friend class SequentialEssenceSource [friend]

---

Member Data Documentation

bool CurrentFileOpen [protected]

True if we have a file open for processing.

FileHandle CurrentFile [protected]

The current file being processed.

EssenceSubParserPtr SubParser [protected]

The sub-parser selected for parsing this sourceessence.

UInt32 CurrentStream [protected]

The currently selected stream in the source essence.

MDObjectPtr CurrentDescriptor [protected]

Pointer to the essence descriptor for the currently selected stream.

WrappingOptionPtr CurrentWrapping [protected]

The currently selected wrapping options.

EssenceSourceParent SeqSource [protected]

This parser's sequential source - which perversely owns the parser!

DataChunkPtr PendingData [protected]

Any pending data from the main stream held over from a previous file is a sub-stream read caused a change of file.

SubStreamList SubStreams [protected]

A list of sub-stream sources.

---

The documentation for this class was generated from the following files:

• essence.h
• essence.cpp

---
