MDTraits Class Reference

#include <mdtraits.h>

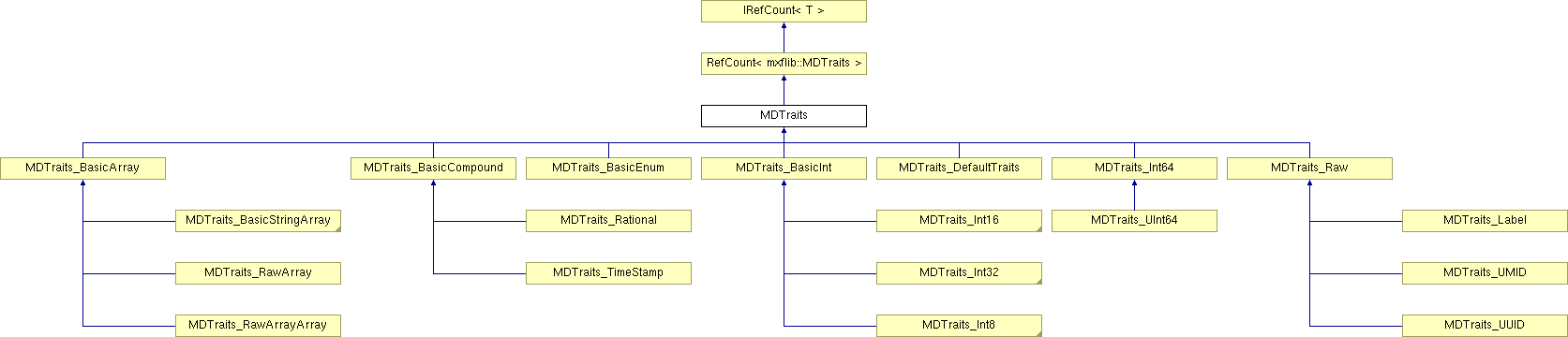

Inheritance diagram for MDTraits:

List of all members.

Public Member Functions
virtual	~MDTraits ()
	Allow virtual destruction.
virtual bool	HandlesSubdata (void) const
	Does this trait take control of all sub-data and build values in the values own DataChunk?
virtual std::string	Name () const=0
	A unique name for this trait.
Static Public Member Functions
static bool	Add (std::string Name, MDTraitsPtr Trait)
	Add a new trait to the list of known traits.
static bool	Replace (std::string Name, MDTraitsPtr Trait)
	Replace the named trait in the list of known traits.
static MDTraitsPtr	Find (std::string Name)
	Locate a named trait in the list of known traits.
Protected Member Functions
	MDTraits ()
	Protected constructor so all traits need to be created via Create().
virtual void	SetInt (MDValuePtr Object, Int32 Val)
virtual void	SetInt64 (MDValuePtr Object, Int64 Val)
virtual void	SetUInt (MDValuePtr Object, UInt32 Val)
virtual void	SetUInt64 (MDValuePtr Object, UInt64 Val)
virtual void	SetString (MDValuePtr Object, std::string Val)
virtual Int32	GetInt (MDValuePtr Object)
virtual Int64	GetInt64 (MDValuePtr Object)
virtual UInt32	GetUInt (MDValuePtr Object)
virtual UInt64	GetUInt64 (MDValuePtr Object)
virtual std::string	GetString (MDValuePtr Object)
virtual size_t	ReadValue (MDValuePtr Object, const UInt8 *Buffer, size_t Size, int Count=0)
void	SetUint (MDValuePtr Object, UInt32 Val)
	Support old capitalization of SetUInt.
void	SetUint64 (MDValuePtr Object, UInt64 Val)
	Support old capitalization of SetUInt64.
UInt32	GetUint (MDValuePtr Object)
	Support old capitalization of GetUInt.
UInt64	GetUint64 (MDValuePtr Object)
	Support old capitalization of GetUInt64.
Static Protected Attributes
static MDTraitsMap	AllTraits
	List of all traits that exist.
Friends
class	MDValue

---

Constructor & Destructor Documentation

MDTraits

(

)

[inline, protected]

Protected constructor so all traits need to be created via Create().

virtual ~MDTraits

(

)

[inline, virtual]

Allow virtual destruction.

---

Member Function Documentation

virtual bool HandlesSubdata

(

void

)

const [inline, virtual]

Does this trait take control of all sub-data and build values in the values own DataChunk?

Normally any contained sub-types (such as array items or compound members) hold their own data

Reimplemented in MDTraits_Raw, MDTraits_UUID, MDTraits_Label, and MDTraits_UMID.

virtual std::string Name

(

)

const [pure virtual]

A unique name for this trait.

Implemented in MDTraits_DefaultTraits, MDTraits_BasicInt, MDTraits_Int8, MDTraits_UInt8, MDTraits_Int16, MDTraits_UInt16, MDTraits_Int32, MDTraits_UInt32, MDTraits_Int64, MDTraits_UInt64, MDTraits_ISO7, MDTraits_UTF16, MDTraits_Raw, MDTraits_BasicArray, MDTraits_BasicStringArray, MDTraits_UTF16String, MDTraits_RawArray, MDTraits_UUID, MDTraits_Label, MDTraits_UMID, MDTraits_RawArrayArray, MDTraits_BasicCompound, MDTraits_BasicEnum, MDTraits_Rational, and MDTraits_TimeStamp.

bool Add	(	std::string	Name,
		MDTraitsPtr	Trait
	)			[static]

Add a new trait to the list of known traits.

True is all went well, else false

bool Replace	(	std::string	Name,
		MDTraitsPtr	Trait
	)			[static]

Replace the named trait in the list of known traits.

True is all went well, else false

MDTraitsPtr Find

(

std::string

Name

)

[static]

Locate a named trait in the list of known traits.

A pointer to the named trait, or NULL if not found

void SetInt	(	MDValuePtr	Object,
		Int32	Val
	)			[protected, virtual]

Reimplemented in MDTraits_Int8, MDTraits_Int16, MDTraits_Int32, MDTraits_Int64, and MDTraits_BasicArray.

void SetInt64	(	MDValuePtr	Object,
		Int64	Val
	)			[protected, virtual]

Reimplemented in MDTraits_BasicInt, MDTraits_Int64, and MDTraits_BasicArray.

void SetUInt	(	MDValuePtr	Object,
		UInt32	Val
	)			[protected, virtual]

Reimplemented in MDTraits_BasicInt, MDTraits_Int64, and MDTraits_BasicArray.

void SetUInt64	(	MDValuePtr	Object,
		UInt64	Val
	)			[protected, virtual]

Reimplemented in MDTraits_BasicInt, MDTraits_Int64, and MDTraits_BasicArray.

void SetString	(	MDValuePtr	Object,
		std::string	Val
	)			[protected, virtual]

Reimplemented in MDTraits_BasicInt, MDTraits_Int64, MDTraits_ISO7, MDTraits_UTF16, MDTraits_Raw, MDTraits_BasicArray, MDTraits_BasicStringArray, MDTraits_UTF16String, MDTraits_RawArray, MDTraits_UUID, MDTraits_Label, MDTraits_UMID, MDTraits_RawArrayArray, MDTraits_BasicCompound, MDTraits_BasicEnum, MDTraits_Rational, and MDTraits_TimeStamp.

Int32 GetInt

(

MDValuePtr

Object

)

[protected, virtual]

Reimplemented in MDTraits_Int8, MDTraits_Int16, MDTraits_Int32, MDTraits_Int64, MDTraits_Raw, and MDTraits_BasicArray.

Int64 GetInt64

(

MDValuePtr

Object

)

[protected, virtual]

Reimplemented in MDTraits_BasicInt, MDTraits_Int64, MDTraits_Raw, and MDTraits_BasicArray.

UInt32 GetUInt

(

MDValuePtr

Object

)

[protected, virtual]

Reimplemented in MDTraits_Int8, MDTraits_Int16, MDTraits_Int32, MDTraits_Int64, MDTraits_Raw, and MDTraits_BasicArray.

UInt64 GetUInt64

(

MDValuePtr

Object

)

[protected, virtual]

Reimplemented in MDTraits_BasicInt, MDTraits_Int64, MDTraits_Raw, and MDTraits_BasicArray.

std::string GetString

(

MDValuePtr

Object

)

[protected, virtual]

Reimplemented in MDTraits_BasicInt, MDTraits_UInt8, MDTraits_UInt16, MDTraits_UInt32, MDTraits_Int64, MDTraits_UInt64, MDTraits_ISO7, MDTraits_UTF16, MDTraits_Raw, MDTraits_BasicArray, MDTraits_BasicStringArray, MDTraits_UTF16String, MDTraits_RawArray, MDTraits_UUID, MDTraits_Label, MDTraits_UMID, MDTraits_RawArrayArray, MDTraits_BasicCompound, MDTraits_BasicEnum, MDTraits_Rational, and MDTraits_TimeStamp.

size_t ReadValue	(	MDValuePtr	Object,
		const UInt8 *	Buffer,
		size_t	Size,
		int	Count = 0
	)			[protected, virtual]

Reimplemented in MDTraits_BasicInt, MDTraits_UInt8, MDTraits_UInt16, MDTraits_UInt32, MDTraits_UInt64, MDTraits_Raw, MDTraits_BasicArray, and MDTraits_BasicCompound.

void SetUint	(	MDValuePtr	Object,
		UInt32	Val
	)			[inline, protected]

Support old capitalization of SetUInt.

void SetUint64	(	MDValuePtr	Object,
		UInt64	Val
	)			[inline, protected]

Support old capitalization of SetUInt64.

UInt32 GetUint

(

MDValuePtr

Object

)

[inline, protected]

Support old capitalization of GetUInt.

UInt64 GetUint64

(

MDValuePtr

Object

)

[inline, protected]

Support old capitalization of GetUInt64.

---

Friends And Related Function Documentation

friend class MDValue [friend]

---

Member Data Documentation

mxflib::MDTraitsMap AllTraits [static, protected]

List of all traits that exist.

---

The documentation for this class was generated from the following files:

• mdtraits.h
• mdtraits.cpp

---
