Partition Class Reference

Holds data relating to a single partition. More...

#include <partition.h>

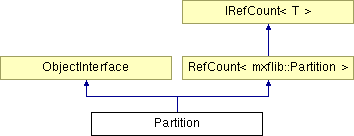

Inheritance diagram for Partition:

List of all members.

Public Member Functions
	Partition (const char *BaseType)
	Partition (MDOTypePtr BaseType)
	Partition (const UL &BaseUL)
	Partition (ULPtr BaseUL)
void	UpdateMetadata (ObjectInterface *NewObject)
	Reload the metadata tree - DRAGONS: not an ideal way of doing this.
void	UpdateMetadata (MDObjectPtr NewObject)
	Reload the metadata tree - DRAGONS: not an ideal way of doing this.
void	AddMetadata (ObjectInterface *NewObject)
	Add a metadata object to the header metadata belonging to a partition.
void	AddMetadata (MDObjectPtr NewObject)
	Add a metadata object to the header metadata belonging to a partition.
void	ClearMetadata (void)
	Clear all header metadata for this partition (including the primer).
Length	ReadMetadata (void)
	Read a full set of header metadata from this partition's source file (including primer).
Length	ReadMetadata (MXFFilePtr File, Length Size)
	Read a full set of header metadata from a file (including primer).
MetadataPtr	ParseMetadata (void)
	Parse the current metadata sets into higher-level sets.
MDObjectListPtr	ReadIndex (void)
	Read any index table segments from this partition's source file.
MDObjectListPtr	ReadIndex (MXFFilePtr File, UInt64 Size)
	Read any index table segments from a file.
bool	ReadIndex (IndexTablePtr Table)
	Read any index segments from this partition's source file, and add them to a given table.
DataChunkPtr	ReadIndexChunk (void)
	Read raw index table data from this partition's source file.
void	SetKAG (UInt64 KAG)
	Set the KAG for this partition.
std::map< UUID, MDObjectPtr > &	GetRefTargets (void)
std::multimap< UUID, MDObjectPtr > &	GetUnmatchedRefs (void)
bool	IsComplete (void)
	Determine if the partition object is currently set as complete.
bool	IsClosed (void)
	Determine if the partition object is currently set as closed.
bool	IsMetadataComplete (void)
	Determine if the metadata in this partition is actually "complete".
bool	SeekEssence (void)
	Locate start of Essence Container.
MDObjectParent	FindLinkParent (MDObjectPtr &Child)
	Locate the set that refers to the given set (with a strong reference).
MDObjectParent	FindLinkParent (MDObjectParent &Child)
	Locate the set that refers to the given set (with a strong reference).
bool	StartElements ()
KLVObjectPtr	NextElement ()
Public Attributes
PrimerPtr	PartitionPrimer
	The Primer for this partition.
MDObjectList	AllMetadata
	List of all header metadata sets in the partition.
MDObjectList	TopLevelMetadata
	List of all metadata items int the partition not linked from another.
Protected Member Functions
UInt64	Skip (UInt64 start)
UInt64	SkipFill (UInt64 start)
Private Member Functions
void	ProcessChildRefs (MDObjectPtr ThisObject)
	Satisfy, or record as un-matched, all outgoing references.
Private Attributes
std::map< UUID, MDObjectPtr >	RefTargets
	Map of UUID of all reference targets to objects.
std::multimap< UUID, MDObjectPtr >	UnmatchedRefs
	Map of UUID of all strong or weak refs not yet linked.
UInt64	_BodyLocation
UInt64	_NextBodyLocation

---

Detailed Description

Holds data relating to a single partition.

---

Constructor & Destructor Documentation

Partition

(

const char *

BaseType

)

[inline]

Partition

(

MDOTypePtr

BaseType

)

[inline]

Partition

(

const UL &

BaseUL

)

[inline]

Partition

(

ULPtr

BaseUL

)

[inline]

---

Member Function Documentation

void UpdateMetadata

(

ObjectInterface *

NewObject

)

[inline]

Reload the metadata tree - DRAGONS: not an ideal way of doing this.

void UpdateMetadata

(

MDObjectPtr

NewObject

)

[inline]

Reload the metadata tree - DRAGONS: not an ideal way of doing this.

void AddMetadata

(

ObjectInterface *

NewObject

)

[inline]

Add a metadata object to the header metadata belonging to a partition.

Note that any strongly linked objects are also added

void AddMetadata

(

MDObjectPtr

NewObject

)

Add a metadata object to the header metadata belonging to a partition.

Note that any strongly linked objects are also added

void ClearMetadata

(

void

)

[inline]

Clear all header metadata for this partition (including the primer).

Length ReadMetadata

(

void

)

Read a full set of header metadata from this partition's source file (including primer).

Returns:

The number of bytes read (including any preceeding filler)

0 if no header metadata in this partition

Length ReadMetadata	(	MXFFilePtr	File,
		Length	Size
	)

Read a full set of header metadata from a file (including primer).

Note:

The value of "Size" does not include the size of any filler before the primer, but the return value does

Returns:

The number of bytes read (including any preceeding filler)

MetadataPtr ParseMetadata

(

void

)

Parse the current metadata sets into higher-level sets.

MDObjectListPtr ReadIndex

(

void

)

Read any index table segments from this partition's source file.

MDObjectListPtr ReadIndex	(	MXFFilePtr	File,
		UInt64	Size
	)

Read any index table segments from a file.

bool ReadIndex

(

IndexTablePtr

Table

)

Read any index segments from this partition's source file, and add them to a given table.

true if all OK

DataChunkPtr ReadIndexChunk

(

void

)

Read raw index table data from this partition's source file.

void SetKAG

(

UInt64

KAG

)

[inline]

Set the KAG for this partition.

std::map<UUID, MDObjectPtr>& GetRefTargets

(

void

)

[inline]

std::multimap<UUID, MDObjectPtr>& GetUnmatchedRefs

(

void

)

[inline]

bool IsComplete

(

void

)

Determine if the partition object is currently set as complete.

bool IsClosed

(

void

)

Determine if the partition object is currently set as closed.

bool IsMetadataComplete

(

void

)

[inline]

Determine if the metadata in this partition is actually "complete".

true if all required properties exist in the metadata sets and no best-effort property is set to its destinguished value false in all other cases, or if there is no metadata loaded

Note:

This is not a guarantee that the metadata is valid!

bool SeekEssence

(

void

)

Locate start of Essence Container.

Moves the file pointer for the parent file to the start of the essence container in this partition

Note:

If there is no essence in this partition the pointer will be moved to the start of the following partition (or the start of the RIP if this is the footer)

MDObjectParent FindLinkParent

(

MDObjectPtr &

Child

)

Locate the set that refers to the given set (with a strong reference).

MDObjectParent FindLinkParent

(

MDObjectParent &

Child

)

[inline]

Locate the set that refers to the given set (with a strong reference).

bool StartElements

(

)

KLVObjectPtr NextElement

(

)

UInt64 Skip

(

UInt64

start

)

[protected]

UInt64 SkipFill

(

UInt64

start

)

[protected]

void ProcessChildRefs

(

MDObjectPtr

ThisObject

)

[private]

Satisfy, or record as un-matched, all outgoing references.

---

Member Data Documentation

PrimerPtr PartitionPrimer

The Primer for this partition.

Or NULL if no primer pack active (only valid if there is no header metadata in this partition OR it has not yet been written)

MDObjectList AllMetadata

List of all header metadata sets in the partition.

MDObjectList TopLevelMetadata

List of all metadata items int the partition not linked from another.

std::map<UUID, MDObjectPtr> RefTargets [private]

Map of UUID of all reference targets to objects.

std::multimap<UUID, MDObjectPtr> UnmatchedRefs [private]

Map of UUID of all strong or weak refs not yet linked.

UInt64 _BodyLocation [private]

UInt64 _NextBodyLocation [private]

---

The documentation for this class was generated from the following files:

• partition.h
• partition.cpp

---
