Track Class Reference

Holds data relating to a track. More...

#include <metadata.h>

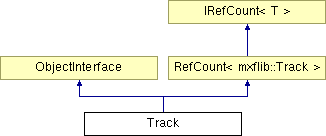

Inheritance diagram for Track:

List of all members.

Public Types
enum	TrackType {   TypeUndetermined = -1, TypeUnknown = 0, TypeTimecode, TypeDM,   TypePicture, TypeSound, TypeData, TypeAux,   TypePText }
	Type of a track. More...
Public Member Functions
	Track (std::string BaseType)
	Track (MDOTypePtr BaseType)
	Track (const UL &BaseUL)
	Track (ULPtr &BaseUL)
SourceClipPtr	AddSourceClip (Int64 Duration=-1)
	Add a SourceClip to a track.
TimecodeComponentPtr	AddTimecodeComponent (Int64 Start=0, Int64 Duration=-1)
	Add a Timecode Component to a track, taking the FPS and Dropframe settings from the track.
TimecodeComponentPtr	AddTimecodeComponent (UInt16 FPS, bool DropFrame, Int64 Start=0, Int64 Duration=-1)
	Add a Timecode Component to a track.
DMSegmentPtr	AddDMSegment (Int64 EventStart=-1, Int64 Duration=-1)
	Add a DMSegment to a track.
DMSourceClipPtr	AddDMSourceClip (Int64 Duration=-1)
	Add a DMSourceClip to a track.
Int64	UpdateDuration (void)
	Update the duration field in the sequence for this track based on component durations.
PackageParent	GetParent (void)
	Get the package containing this track.
void	SetParent (PackagePtr &NewParent)
	Set the package containing this track.
void	SetParent (IRefCount< Package > *NewParent)
	Set the track containing this component.
TrackType	GetType (void)
	Determine the type of this track.
bool	IsEssenceTrack (void)
	Determine if this is an essence track.
bool	IsTimecodeTrack (void)
	Determine if this is a timecode track.
bool	IsDMTrack (void)
	Determine if this is a descriptive metadata track.
Static Public Member Functions
static TrackPtr	GetTrack (MDObjectPtr Object)
	Return the containing "Track" object for this MDObject.
static TrackPtr	Parse (MDObjectPtr BaseObject)
	Parse an existing MDObject into a Track object.
static void	AddTrackType (TrackType Type, const UInt8 *Label, int CompareLength=16)
	Add a new track type definition label.
Public Attributes
ComponentList	Components
	Each component on this track.
Protected Types
typedef std::list< TrackTypeListItem >	TrackTypeList
	List of track type definitions.
Protected Member Functions
	Track (MDObjectPtr BaseObject)
	Protected constructor used to create from an existing MDObject.
Static Protected Member Functions
static void	InitTrackTypes (void)
	Initialise the TrackTypes list with known track types.
Protected Attributes
PackageParent	Parent
	Package containing this track.
TrackType	ThisTrackType
	The type of this track.
Static Protected Attributes
static TrackTypeList	TrackTypes
	List of known track type definitions.
static bool	TrackTypesInited
	Set true once TrackTypeList has been initialized.
Classes
struct	TrackTypeListItem
	Structure for a single item in the track type list (for comparing data definitions). More...

---

Detailed Description

Holds data relating to a track.

---

Member Typedef Documentation

typedef std::list<TrackTypeListItem> TrackTypeList [protected]

List of track type definitions.

---

Member Enumeration Documentation

enum TrackType

Type of a track.

Enumerator:

TypeUndetermined	Not yet checked.
TypeUnknown	Not a known type.
TypeTimecode	Timecode track (of any type).
TypeDM	Descriptive Metadata track.
TypePicture	Picture track.
TypeSound	Sound track.
TypeData	Data track.
TypeAux	Auxiliary track.
TypePText	Parsed Text track.

---

Constructor & Destructor Documentation

Track

(

MDObjectPtr

BaseObject

)

[inline, protected]

Protected constructor used to create from an existing MDObject.

Track

(

std::string

BaseType

)

[inline]

Track

(

MDOTypePtr

BaseType

)

[inline]

Track

(

const UL &

BaseUL

)

[inline]

Track

(

ULPtr &

BaseUL

)

[inline]

---

Member Function Documentation

SourceClipPtr AddSourceClip

(

Int64

Duration = -1

)

Add a SourceClip to a track.

Parameters:

Duration

The duration of this SourceClip, -1 or omitted for unknown

TimecodeComponentPtr AddTimecodeComponent	(	Int64	Start = 0,
		Int64	Duration = -1
	)			[inline]

Add a Timecode Component to a track, taking the FPS and Dropframe settings from the track.

TimecodeComponentPtr AddTimecodeComponent	(	UInt16	FPS,
		bool	DropFrame,
		Int64	Start = 0,
		Int64	Duration = -1
	)

Add a Timecode Component to a track.

Parameters:

	FPS	The rounded integer timebase of the track in frames per second
	DropFrame	= true if dropframe is to be use with this timecode
	Start	The starting timecode converted to an integer frame count since 00:00:00:00
	Duration	The duration of this SourceClip, -1 or omitted for unknown

Set the framerate

Set the initial timecode

DMSegmentPtr AddDMSegment	(	Int64	EventStart = -1,
		Int64	Duration = -1
	)

Add a DMSegment to a track.

Parameters:

	EventStart	The start position of this Segemnt, -1 or omitted for static or timeline
	Duration	The duration of this SourceClip, -1 or omitted for static

DMSourceClipPtr AddDMSourceClip

(

Int64

Duration = -1

)

Add a DMSourceClip to a track.

Int64 UpdateDuration

(

void

)

Update the duration field in the sequence for this track based on component durations.

Returns:

The duration, or -1 if unknown

PackageParent GetParent

(

void

)

[inline]

Get the package containing this track.

void SetParent

(

PackagePtr &

NewParent

)

[inline]

Set the package containing this track.

void SetParent

(

IRefCount< Package > *

NewParent

)

[inline]

Set the track containing this component.

Track::TrackType GetType

(

void

)

Determine the type of this track.

bool IsEssenceTrack

(

void

)

[inline]

Determine if this is an essence track.

< Picture track

< Sound track

< Data track

bool IsTimecodeTrack

(

void

)

[inline]

Determine if this is a timecode track.

bool IsDMTrack

(

void

)

[inline]

Determine if this is a descriptive metadata track.

TrackPtr GetTrack

(

MDObjectPtr

Object

)

[static]

Return the containing "Track" object for this MDObject.

Returns:

NULL if MDObject is not contained in a Track object

TrackPtr Parse

(

MDObjectPtr

BaseObject

)

[static]

Parse an existing MDObject into a Track object.

void AddTrackType	(	TrackType	Type,
		const UInt8 *	Label,
		int	CompareLength = 16
	)			[static]

Add a new track type definition label.

Parameters:

	Type	The type of track that this new definition identifies
	Label	The label to compare with the data definition
	CompareLength	The number of bytes to compare in the label, this allows generic labels

void InitTrackTypes

(

void

)

[static, protected]

Initialise the TrackTypes list with known track types.

---

Member Data Documentation

ComponentList Components

Each component on this track.

PackageParent Parent [protected]

Package containing this track.

TrackType ThisTrackType [protected]

The type of this track.

Track::TrackTypeList TrackTypes [static, protected]

List of known track type definitions.

bool TrackTypesInited [static, protected]

Set true once TrackTypeList has been initialized.

---

The documentation for this class was generated from the following files:

• metadata.h
• metadata.cpp

---
