EssenceSubParser Class Reference

Abstract base class for all essence parsers. More...

#include <essence.h>

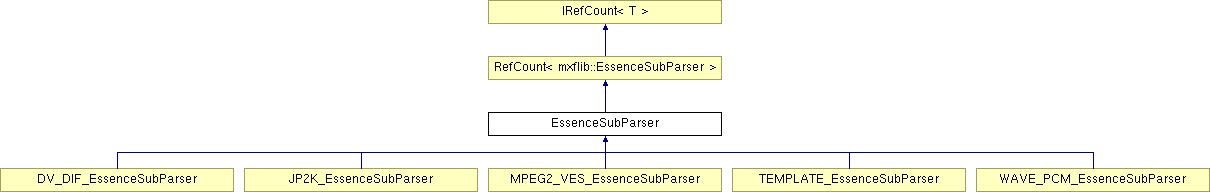

Inheritance diagram for EssenceSubParser:

List of all members.

Public Member Functions
virtual	~EssenceSubParser ()
	Base destructor (to allow polymorphism).
virtual StringList	HandledExtensions (void)
	Report the extensions of files this sub-parser is likely to handle.
virtual EssenceStreamDescriptorList	IdentifyEssence (FileHandle InFile)
	Examine the open file and return a list of essence descriptors.
virtual WrappingOptionList	IdentifyWrappingOptions (FileHandle InFile, EssenceStreamDescriptor &Descriptor)
	Examine the open file and return the wrapping options known by this parser.
virtual void	Use (UInt32 Stream, WrappingOptionPtr &UseWrapping)
	Set a wrapping option for future Read and Write calls.
virtual bool	CanReValidate (void)
	Does this essence parser support ReValidate().
virtual bool	ReValidate (FileHandle Infile, UInt32 Stream, MDObjectPtr &Descriptor, WrappingOptionPtr &UseWrapping)
	Quickly validate that the given (open) file can be wrapped as specified.
WrappingOption::WrapType	GetWrapType (void)
	Get the wrapping type that has been selected by Use().
virtual bool	SetEditRate (Rational EditRate)
	Set a non-native edit rate.
virtual Rational	GetEditRate (void)=0
	Get the current edit rate.
virtual Rational	GetPreferredEditRate (void)
	Get the preferred edit rate (if one is known).
virtual UInt32	GetBytesPerEditUnit (UInt32 KAGSize=1)
	Get BytesPerEditUnit, if Constant.
virtual Position	GetCurrentPosition (void)=0
	Get the current position in SetEditRate() sized edit units.
virtual void	SetIndexManager (IndexManagerPtr &TheManager, int StreamID=0)
	Set the IndexManager for this essence stream (and the stream ID if we are not the main stream).
virtual IndexManagerPtr &	GetIndexManager (void)
	Get the IndexManager for this essence stream.
virtual int	GetIndexStreamID (void)
	Get the IndexManager StreamID for this essence stream.
virtual void	SetStreamOffset (Position EditUnit, UInt64 Offset)
	Set the stream offset for a specified edit unit into the current index manager.
virtual bool	OfferStreamOffset (Position EditUnit, UInt64 Offset)
	Offer the stream offset for a specified edit unit to the current index manager.
virtual void	IndexNext (void)
	Instruct index manager to accept the next edit unit.
virtual int	IndexLogNext (void)
	Instruct index manager to accept and log the next edit unit.
virtual int	LogNext (void)
	Instruct index manager to log the next edit unit.
virtual Position	ReadLog (int LogID)
	Read an edit unit from the index manager's log.
virtual Position	AcceptProvisional (void)
	Instruct index manager to accept provisional entry.
Position	GetLastNewEditUnit (void)
	Read the edit unit of the last entry added via the index manager (or IndexLowest if none added).
virtual UInt8	GetGCEssenceType (void)
	Get the GCEssenceType to use when wrapping this essence in a Generic Container.
virtual UInt8	GetGCElementType (void)
	Get the GCEssenceType to use when wrapping this essence in a Generic Container.
virtual DataChunkPtr	Read (FileHandle InFile, UInt32 Stream, UInt64 Count=1)=0
	Read a number of wrapping items from the specified stream and return them in a data chunk.
virtual EssenceSourcePtr	GetEssenceSource (FileHandle InFile, UInt32 Stream, UInt64 Count=1)=0
	Build an EssenceSource to read a number of wrapping items from the specified stream.
virtual Length	Write (FileHandle InFile, UInt32 Stream, MXFFilePtr OutFile, UInt64 Count=1)=0
	Write a number of wrapping items from the specified stream to an MXF file.
virtual bool	SetOption (std::string Option, Int64 Param=0)
	Set a parser specific option.
virtual std::string	GetParserName (void) const
	Get a unique name for this sub-parser.
virtual EssenceSubParserPtr	NewParser (void) const =0
	Build a new sub-parser of the appropriate type.
Protected Attributes
WrappingOptionPtr	SelectedWrapping
	The wrapping options selected.
IndexManagerPtr	Manager
	The index manager in use.
int	ManagedStreamID
	This essence stream's stream ID in the index manager.
Friends
class	ESP_EssenceSource
Classes
class	ESP_EssenceSource
	Base class for essence parser EssenceSource objects. More...

---

Detailed Description

Abstract base class for all essence parsers.

Note:

It is important that no derived class has its own derivation of RefCount<>

---

Constructor & Destructor Documentation

virtual ~EssenceSubParser

(

)

[inline, virtual]

Base destructor (to allow polymorphism).

---

Member Function Documentation

virtual StringList HandledExtensions

(

void

)

[inline, virtual]

Report the extensions of files this sub-parser is likely to handle.

Reimplemented in DV_DIF_EssenceSubParser, JP2K_EssenceSubParser, MPEG2_VES_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

virtual EssenceStreamDescriptorList IdentifyEssence

(

FileHandle

InFile

)

[inline, virtual]

Examine the open file and return a list of essence descriptors.

This function should fail as fast as possible if the essence if not identifyable by this object

Returns:

A list of EssenceStreamDescriptors where each essence stream identified in the input file has an identifier (to allow it to be referenced later) and an MXF File Descriptor

Reimplemented in DV_DIF_EssenceSubParser, JP2K_EssenceSubParser, MPEG2_VES_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

virtual WrappingOptionList IdentifyWrappingOptions	(	FileHandle	InFile,
		EssenceStreamDescriptor &	Descriptor
	)			[inline, virtual]

Examine the open file and return the wrapping options known by this parser.

Parameters:

	InFile	The open file to examine (if the descriptor does not contain enough info)
	Descriptor	An essence stream descriptor (as produced by function IdentifyEssence) of the essence stream requiring wrapping

Note:

The options should be returned in an order of preference as the caller is likely to use the first that it can support

Reimplemented in DV_DIF_EssenceSubParser, JP2K_EssenceSubParser, MPEG2_VES_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

virtual void Use	(	UInt32	Stream,
		WrappingOptionPtr &	UseWrapping
	)			[inline, virtual]

Set a wrapping option for future Read and Write calls.

Reimplemented in DV_DIF_EssenceSubParser, and MPEG2_VES_EssenceSubParser.

virtual bool CanReValidate

(

void

)

[inline, virtual]

Does this essence parser support ReValidate().

virtual bool ReValidate	(	FileHandle	Infile,
		UInt32	Stream,
		MDObjectPtr &	Descriptor,
		WrappingOptionPtr &	UseWrapping
	)			[inline, virtual]

Quickly validate that the given (open) file can be wrapped as specified.

Providing that the given essence descriptor and wrapping option can be used this will leave the parser in the state it would have been in after calls to IdentifyEssence(), IdentifyWrappingOptions() and Use(). This is used when parsing a list of files to check that the second and later files are the same format as the first

Returns:

true if all OK

WrappingOption::WrapType GetWrapType

(

void

)

[inline]

Get the wrapping type that has been selected by Use().

virtual bool SetEditRate

(

Rational

EditRate

)

[inline, virtual]

Set a non-native edit rate.

Returns:

true if this rate is acceptable

Reimplemented in DV_DIF_EssenceSubParser, JP2K_EssenceSubParser, MPEG2_VES_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

virtual Rational GetEditRate

(

void

)

[pure virtual]

Get the current edit rate.

Implemented in DV_DIF_EssenceSubParser, JP2K_EssenceSubParser, MPEG2_VES_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

virtual Rational GetPreferredEditRate

(

void

)

[inline, virtual]

Get the preferred edit rate (if one is known).

Returns:

The prefered edit rate or 0/0 if note known

Reimplemented in JP2K_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

virtual UInt32 GetBytesPerEditUnit

(

UInt32

KAGSize = 1

)

[inline, virtual]

Get BytesPerEditUnit, if Constant.

Note that we use KAGSize to prevent compiler warnings (we cannot omit it as it has a default value)

Reimplemented in DV_DIF_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

virtual Position GetCurrentPosition

(

void

)

[pure virtual]

Get the current position in SetEditRate() sized edit units.

This is relative to the start of the stream, so the first edit unit is always 0. This is the same as the number of edit units read so far, so when the essence is exhausted the value returned shall be the size of the essence

Implemented in DV_DIF_EssenceSubParser, JP2K_EssenceSubParser, MPEG2_VES_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

virtual void SetIndexManager	(	IndexManagerPtr &	TheManager,
		int	StreamID = 0
	)			[inline, virtual]

Set the IndexManager for this essence stream (and the stream ID if we are not the main stream).

Reimplemented in MPEG2_VES_EssenceSubParser.

virtual IndexManagerPtr& GetIndexManager

(

void

)

[inline, virtual]

Get the IndexManager for this essence stream.

virtual int GetIndexStreamID

(

void

)

[inline, virtual]

Get the IndexManager StreamID for this essence stream.

virtual void SetStreamOffset	(	Position	EditUnit,
		UInt64	Offset
	)			[inline, virtual]

Set the stream offset for a specified edit unit into the current index manager.

virtual bool OfferStreamOffset	(	Position	EditUnit,
		UInt64	Offset
	)			[inline, virtual]

Offer the stream offset for a specified edit unit to the current index manager.

virtual void IndexNext

(

void

)

[inline, virtual]

Instruct index manager to accept the next edit unit.

virtual int IndexLogNext

(

void

)

[inline, virtual]

Instruct index manager to accept and log the next edit unit.

virtual int LogNext

(

void

)

[inline, virtual]

Instruct index manager to log the next edit unit.

virtual Position ReadLog

(

int

LogID

)

[inline, virtual]

Read an edit unit from the index manager's log.

virtual Position AcceptProvisional

(

void

)

[inline, virtual]

Instruct index manager to accept provisional entry.

Returns:

The edit unit of the entry accepted - or IndexLowest if none available

Position GetLastNewEditUnit

(

void

)

[inline]

Read the edit unit of the last entry added via the index manager (or IndexLowest if none added).

virtual UInt8 GetGCEssenceType

(

void

)

[inline, virtual]

Get the GCEssenceType to use when wrapping this essence in a Generic Container.

virtual UInt8 GetGCElementType

(

void

)

[inline, virtual]

Get the GCEssenceType to use when wrapping this essence in a Generic Container.

virtual DataChunkPtr Read	(	FileHandle	InFile,
		UInt32	Stream,
		UInt64	Count = 1
	)			[pure virtual]

Read a number of wrapping items from the specified stream and return them in a data chunk.

If frame or line mapping is used the parameter Count is used to determine how many items are read. In frame wrapping it is in units of EditRate, as specified in the call to Use(), which may not be the frame rate of this essence

Note:

This is going to take a lot of memory in clip wrapping!

Implemented in DV_DIF_EssenceSubParser, JP2K_EssenceSubParser, MPEG2_VES_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

virtual EssenceSourcePtr GetEssenceSource	(	FileHandle	InFile,
		UInt32	Stream,
		UInt64	Count = 1
	)			[pure virtual]

Build an EssenceSource to read a number of wrapping items from the specified stream.

Implemented in DV_DIF_EssenceSubParser, JP2K_EssenceSubParser, MPEG2_VES_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

virtual Length Write	(	FileHandle	InFile,
		UInt32	Stream,
		MXFFilePtr	OutFile,
		UInt64	Count = 1
	)			[pure virtual]

Write a number of wrapping items from the specified stream to an MXF file.

If frame or line mapping is used the parameter Count is used to determine how many items are read. In frame wrapping it is in units of EditRate, as specified in the call to Use(), which may not be the frame rate of this essence stream

Note:

This is the only safe option for clip wrapping

Returns:

Count of bytes transferred

Implemented in DV_DIF_EssenceSubParser, JP2K_EssenceSubParser, MPEG2_VES_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

virtual bool SetOption	(	std::string	Option,
		Int64	Param = 0
	)			[inline, virtual]

Set a parser specific option.

Returns:

true if the option was successfully set

Reimplemented in DV_DIF_EssenceSubParser, and MPEG2_VES_EssenceSubParser.

virtual std::string GetParserName

(

void

)

const [inline, virtual]

Get a unique name for this sub-parser.

The name must be all lower case, and must be unique. The recommended name is the part of the filename of the parser header after "esp_" and before the ".h". If the parser has no name return "" (however this will prevent named wrapping option selection for this sub-parser)

Reimplemented in DV_DIF_EssenceSubParser, JP2K_EssenceSubParser, MPEG2_VES_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

virtual EssenceSubParserPtr NewParser

(

void

)

const [pure virtual]

Build a new sub-parser of the appropriate type.

Note:

You must redifine this function in a sub-parser even if it is not going to be its own factory (EssenceSubParserFactory used). In this case it is best to call the factory's NewParser() method.

Implemented in DV_DIF_EssenceSubParser, JP2K_EssenceSubParser, MPEG2_VES_EssenceSubParser, TEMPLATE_EssenceSubParser, and WAVE_PCM_EssenceSubParser.

---

Friends And Related Function Documentation

friend class ESP_EssenceSource [friend]

---

Member Data Documentation

WrappingOptionPtr SelectedWrapping [protected]

The wrapping options selected.

IndexManagerPtr Manager [protected]

The index manager in use.

int ManagedStreamID [protected]

This essence stream's stream ID in the index manager.

---

The documentation for this class was generated from the following file:

• essence.h

---
